S S Dutch Twilled Mesh

Stainless Steel Twill Dutch weave woven wire cloth combines Dutch and twill weaving to provide a fine mesh filtering cloth,the shute wires are arranged as close together as possible, used to influence the filtration rate. It is utilized in the crucial fil

Hits: 【Print】

Inquiry

Description
Specification

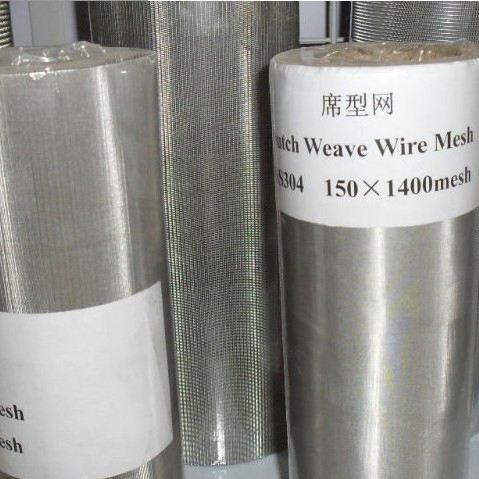

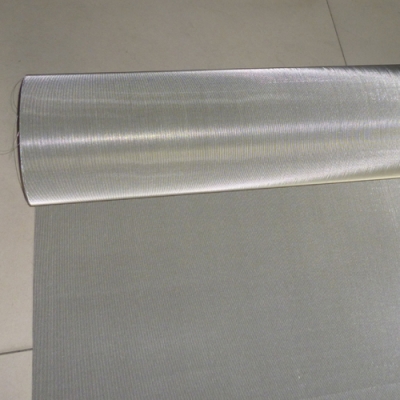

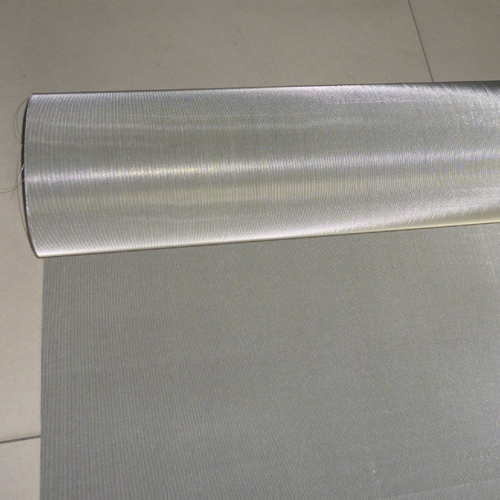

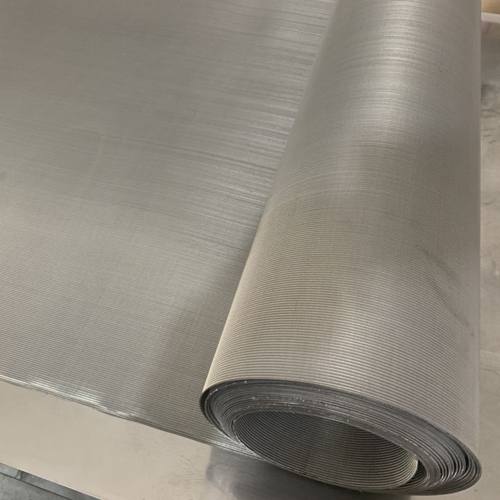

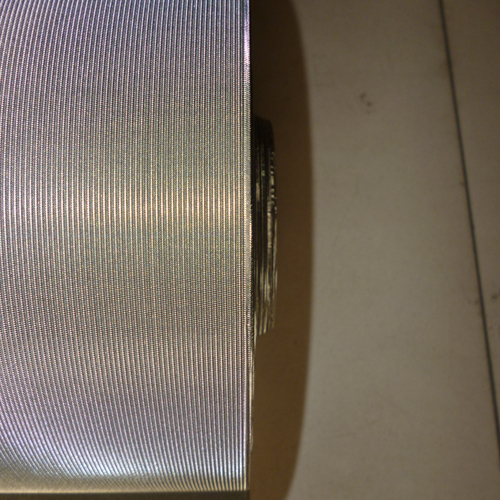

Stainless Steel Dutch Twilled Mesh

stainless Steel Twill Dutch weave woven wire cloth combines Dutch and twill weaving to provide a fine mesh filtering cloth It is utilized in the crucial filtration applications including very high pressure such as gas and liquid filtration.

Dutch twilled weave:Each warp wire and each weft wire passes over and under the next two adjacent complementary wires, as in a normal Twill Weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction. This weave pattern enables the weft wires to be woven more densely, and much smaller aperture sizes can be achieved without forsaking cloth thickness.The characteristic structure of this tight weave provides high filtration accuracy. Another variation of this is Open Twilled Dutch Weave where fewer shute wires are used to influence the filtration rate.

Mesh	Wire Dia. (MM)	Microns	Material(AISI)
80meshX700mesh	0.102/0.070	0.043	304 or 316
165meshX800mesh	0.071/0.041	0.037	304 or 316
150meshX800mesh	0.069/0.053	0.035	304 or 316
200meshX600mesh	0.053/0.046	0.030	304 or 316
150meshX1000mesh	0.069/0.053	0.025	304 or 316
165meshX1400mesh	0.066/0.041	0.021	304 or 316
200meshX1400mesh	0.053/0.046	0.016	304 or 316
325meshX2300mesh	0.036/0.025	0.008	304 or 316
