Product Details

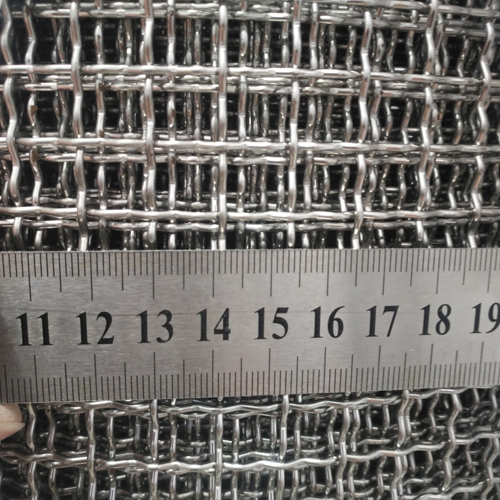

S S Crimped Wire Mesh

Stainless Steel Crimped Wire Mesh is woven to size in the same way cloth is woven on a loom.

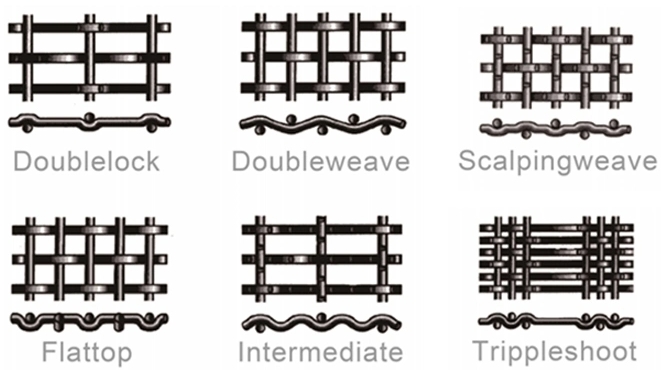

The Woven wire Woven Wire mesh panel Crimp Styles types :
Plain Weave/Double Crimp Woven Wire,Lock Crimp,Double Crimp,Inter crimp,Flat Top.

Lock crimp: Lock crimp is comprised of pre-crimped wire featuring the formation of knuckles or bumps over intersecting sets of wires. This locks the mesh in place to create an extremely rigid product.Double crimp: Double crimp wire mesh cloth exhibits a pattern of warp wires passing over and underfill wires.Intercrimp: Commonly used for screens and architectural applications, intercrimp woven wire mesh provides superior strength and stability, while offering a rigid mesh solution.Flat top: As the name implies, the flat top crimp style features a smooth top plane that facilitates the flow of materials.

Crimped Wire Mesh Is Made Of  Stainless Steel Wire.

Weaving Patterns: Weaving After Crimping.

This Kind Of Wire Mesh Is Identified From A Wire Crimped Only In The Points Of Intersection, Before Weaving. Crimped Wire Mesh Is Only Made On Request And The Wire Used May Be Round Or Square.

Product Features:

Crimped Woven Wire Mesh Offers Great Dimensional Strength And Stability, Great Resistance To Abrasion, Uniform Openings, And Excellent Anti-Corrosion. It Is Usually Used As A Quarry Screen In Mines, Quarries, And Other Industrial Fields For Sieving, Grading, And Separating Screening Materials.

Basic Parameters:

Aperture Width: 10 - 120Mm In The Case Of Multi-Notch Meshes And 4 - 40Mm In The Case Of Single-Notch Meshes.

Wire Diameter: 1.0 - 5.5Mm.

Mesh Width: Up To 2000Mm.

Crimped Wire Mesh Is Supplied In The Form Of Sheets.

Weaving Types

Double Crimp Wire Mesh

Double Crimp Wire Mesh Is Manufactured With Pre-Crimped Wires To Obtain Precise Screening Apertures And Achieve Maximum Rigidity.

Generally, It Works Well In Conditions Where Materials Are Not Sticky Or Materials With A Small Tendency To peel or Wedge.

Flat Top Wire Mesh

Flat-Top Wire Mesh Is Manufactured With Wires Crimped On One Side Only To Create A Flat Surface, Thus Enhancing Its Durability And

Allowing Bigger Apertures With High Precision. It Is Generally Used For Coarse Mineral Screening.

Lock Crimp Wire Mesh

Double Crimp Wire Mesh Is Manufactured With Pre-Crimped Wires To Obtain Precise Screening Apertures And Achieve Maximum Rigidity.

Generally, It Works Well In Conditions Where Materials Are Not Sticky Or Materials With A Small Tendency To peel or Wedge.

Common Woven Wire Cloth Materials include:

Stainless Steel  Wire 304
Stainless Steel Wire  304L
Stainless Steel Wire  316
Stainless Steel Wire  316L
Copper and Copper Alloys: Copper, Brass, Bronze, Phosphor Bronze

Stainless steel wire mesh, specifically Type 304 stainless steel, is the most popular material for producing woven wire cloth. Also known as 18-8 because of its 18 percent chromium and eight percent nickel components, 304 is a basic stainless alloy that offers a combination of strength, corrosion resistance and affordability. Type 304 stainless steel is normally the best option when manufacturing grilles, vents or filters used for the general screening of liquids, powders, abrasives and solids.

woven wire mesh; marco mesh; wire fabrication

Fabricated Woven Wire Basket Woven Wire Mesh; wire mesh Woven Wire Mesh Fencing Woven Wire Mesh; wire mesh; marco wire mesh Woven Steel Wire Handrailmarco wire mesh; wire; woven wire Wire Mesh ScreenWoven wire mesh also known as woven wire cloth, are woven on looms, a process that is similar to the one used to weave clothing. The mesh can consist of various crimping patterns for the interlocking segments. This interlocking method, which entails the precise arrangement of the wires over and under one another prior to crimping them into place, creates a product that’s strong and reliable. The high-precision manufacturing process makes woven wire cloth more labor-intensive to produce therefore it is typically more expensive than welded wire mesh.

Woven Wire Mesh Crimp and Weave StylesWire openings and sizes range broadly. Marco Specialty Steel offers many different weave patterns and pre-crimp styles. Below are examples of crimp and weave styles that are available. See our Crimp and Weave Styles page for more detailed information.

Mesh Size: 4mesh x 4mesh ,6mesh x 6mesh ,8mesh x 8mesh
The Wire Diameter: 0.30mm-2.0mm

This wire cloth is commonly used to make strainers, filter screens, and sieves.
304 stainless steel has good corrosion and abrasion resistance.
316 stainless steel has excellent corrosion and abrasion resistance. Use it in food-processing applications; it is able to withstand corrosive solutions and harsh cleaning.

Stainless steel is the optimum solution for your woven mesh needs. By selecting stainless steel you will utilise its numerous benefits including:

✔ Long term performance
✔ Minimal maintenance
✔ Strength
✔ Life cycle costing
✔ Low environmental impact

Stainless Steel Woven Wire Mesh is manufactured by weaving longitudinal and transverse wires together. Commercial / Industrial grade mesh also known as wire cloth and gauze is extensively used for:

Industry for filtration, screening / sieving and food pressing/ drying
ultrasonic cleaning systems
Industry for Hollander Mesh & Bolting Cloth
Architecture for function and appearance both internally and externally
Bushfire Mesh part of your solution to bushfire protection
Window & Door Mesh part of your solution for stopping insects, intruders & ember
